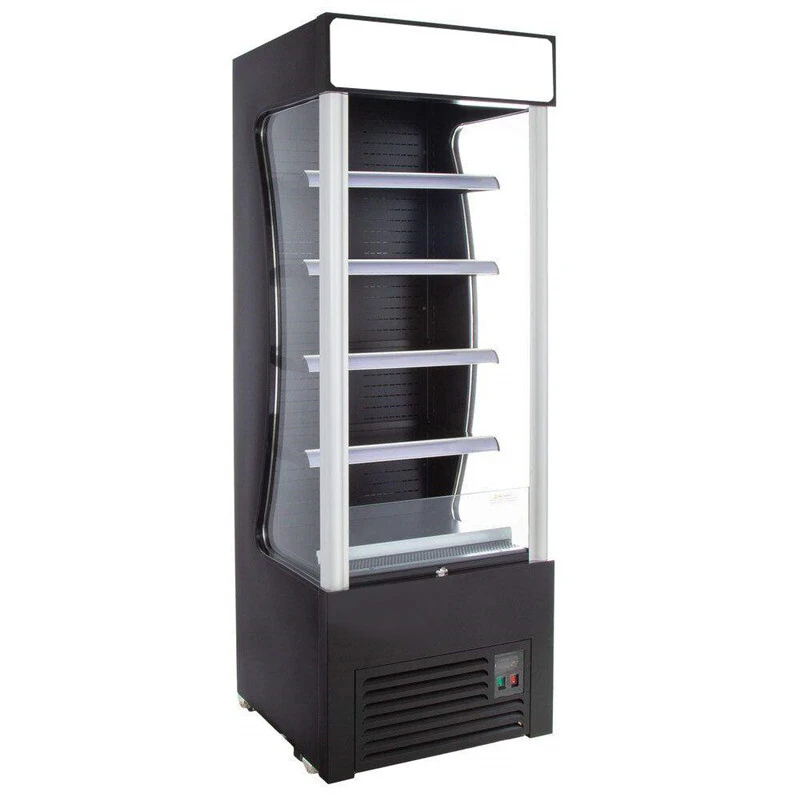

LD3-2Z(C) Multideck Open Chiller

GRAB & GO BOOST YOUR SALES!
This multideck open chiller is a good grab and go solution for beverage, yogurt, salad and other chilled food. It takes a small footprint but maximize commodity display. With 2 high brightness vertical LED lights on each side, the vivid branding and the freshness of the food is presented to customer on a black background.
FOOD SAFE PRESERVING TECHNOLOGY
Throughout years of expirence and research, we formed a sophisicate air curtain system that preserve a constant temperature range 35.6F~44.6F and the temperature difference is only 4F among all shelves.
EASY TO USE
You need only to plug in the unit.  With build-in auto evporation system, you don't have to worry about the drainage water which is the most troublesome work in using an open chiller. Our engineer has tested the unit in different humid ambient and developed a more secure re-evaporated drip tray. Hot gas, electric heater, plus the final assurance water pipe leave you no headache of drainage water.
ECO FRIENDLY
In order to save your electricity bill and be friendly to environment, we have applied the latest energy saving technologies in these equipment. We use very a high efficiency compressor, ECM fan motors and energy saving LED lights, these units are approved with DOE latest standard. Moreover, you can pull down night curtain to reduce engery consumption after business hour.
ENDURABLE AND RELIABLE
We understand that quality is the first priority when you chose a commercial utility cooler. We choose only good material and component since we believe that to do things right in the beginning is the way of most cost saving! All units have been completely plug-in tested and inspected before shipping to you. What’s more, we offer 1 years warranty, sufficient spare parts and 24h online service to enhance your use experience .
5.0
design customization

    oops...!

    no product data.

    Go to homepage
    LD3-2Z Multideck Open Chiller
    KEY FEATURES

    * Custom Designed for easy product access
    * Integrate vertical lighting in each post
    * Electric temperature control with digital readout
    * Automatic defrost and heated drain pan
    * Pull down night curtain
    * Adjust dual position shelves
    * High impact graphics available
    * Air curtain for optimum cooling effciency
    * Hot gas evaporation system
    * Low maintenance condenser

    MODELLD3-2Z(C1)LD3-2Z(C2)LD3-2Z(C4)
    ELECTRICAL
    Rated Current10A10A10A
    Electricity110-120V 60Hz110-120V 60Hz110-120V 60Hz
    Input Power960W960W960W
    REFRIGERATION
    GasR290R290R290
    Compressor LocationBottom MountedBottom MountedBottom Mounted
    Operational Temperature35.6℉~50℉35.6℉~50℉SECOP
    Compressor brandSECOPDigital controller35.6℉~50℉
    ThermostatDigital controllerSECOPDigital controller
    FEATURES
    Totally Capacity10.6 cu.ft /300 L14.7 cu.ft /415 L13.2 cu.ft /375 L
    FeaturesLED LightingLED LightingLED Lighting
    Wheel/Feet4 wheels,4 wheels,4 wheels,
    Exterior FinishBlack PCMBlack PCMBlack PCM
    Interior FinishBlack PCMBlack PCMBlack PCM
    DIMENSIONS
    Number of Shelves444
    Size(Width*Depth*Height)27.6x28.35x79.53 inches35.4x32.5x80.5 inches45.7x25.6x81.5 inches
    Height79 17/32 inches  2020mm80 5/11 inches  2043mm81 1/2 inches 2070mm
    Width27 9/16 inches  700mm35 7/16 inches  900mm45 43/64 inches  1160mm
    Depth28 11/32 inches  720mm32 31/64 inches  825mm25 19/32 inches  650mm
    Packing Height83 55/64  inches 2130mm84 27/32  inches 2155mm85 53/64  inches 2180mm
    Packing Width29 9/64 inches 740mm36 13/16 inches  935mm46 27/32 inches  1190mm
    Packing Depth29 59/64 inches  760mm34 1/16 inches  865mm27 9/16 inches  700mm
    Weight352lbs462lbs495lbs
